| Bearing Unit No. | Shaft Dia d |

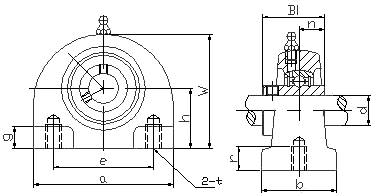

Dimensions(mm) | Bearing No. | Housing No. | Housing Wt (kg) |
|||||||||
| in | mm | h | a | e | w | b | s | r | Bi | n | ||||
| SUCPA201-8 SUCPA202-10 SUCPA204-12 SUCPA204 |
1/2 5/8 3/4 |
20 | 33.3 | 73 | 50.8 | 65 | 38 | 3/8-16 | 13 | 31 | 12.7 | SUC201-8 SUC202-10 SUC204-12 SUC204 |
SPA204 | 0.48 |
| SUCPA205-14 SUCPA205-15 SUCPA205-16 SUCPA205 |
7/8 15/16 1 |
25 | 36.5 | 76 | 50.8 | 71 | 38 | 3/8-16 | 13 | 34 | 14.3 | SUC205-14 SUC205-15 SUC205-16 SUC205 |
SPA205 | 0.6 |
| SUCPA206-17 SUCPA206-18 SUCPA206-19 SUCPA206-20 SUCPA206 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 | 42.9 | 102 | 76.2 | 86 | 38 | 7/16-14 | 16 | 38.1 | 15.9 | SUC206-17 SUC206-18 SUC206-19 SUC206-20 SUC206 |
SPA206 | 1.05 |
| SUCPA207-20 SUCPA207-21 SUCPA207-22 SUCPA207-23 SUCPA207 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 | 47.6 | 108 | 82.6 | 95 | 48 | 1/2-13 | 19 | 42.9 | 17.5 | SUC207-20 SUC207-21 SUC207-22 SUC207-23 SUC207 |
SPA207 | 1.4 |
| SUCPA208-24 SUCPA208 |
1-1/2 |
40 | 49.2 | 117 | 88.9 | 100 | 48 | 1/2-13 | 19 | 49.2 | 19 | SUC208-24 SUC208 |
SPA208 | 1.55 |
| SUCPA209-26 SUCPA209-27 SUCPA209-28 SUCPA209 |
1-5/8 1-11/16 1-3/4 |
45 | 54 | 127 | 95.3 | 108 | 51 | 1/2-13 | 19 | 51.6 | 19 | SUC209-26 SUC209-27 SUC209-28 SUC209 |
SPA209 | 1.82 |
| SUCPA210-30 SUCPA210-31 SUCPA210-32 SUCPA210 |
1-7/8 1-15/16 2 |
50 | 57.2 | 140 | 101.6 | 117 | 51 | 5/8-11 | 22 | 55.6 | 19 | SUC210-30 SUC210-31 SUC210-32 SUC210 |
SPA210 | 2.3 |
