Two-Bolt
Flange Units in Stainless steel |
|
|
 |
| Bearing Unit No. | Shaft Dia d |

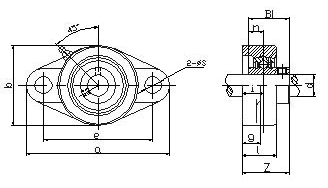

Dimensionsmm | Bolt Used | Bearing No. | Housing No. |
Housing Wt (kg) |
|||||||||||
| in | mm | a | e | i | g | l | s | b | z | Bi | n | in | mm | ||||
| SUCFL201-8 SUCFL202-10 SUCFL204-12 SUCFL204 |
1/2 5/8 3/4 |
20 | 113 | 90 | 15 | 11 | 25.5 | 10.5 | 60 | 33.3 | 31 | 12.7 | 5/16 | M8 | SUC201-8 SUC202-10 SUC204-12 SUC204 |
SFL204 | 0.32 |
| SUCFL205-14 SUCFL205-15 SUCFL205-16 SUCFL205 |
7/8 15/16 1 |
25 | 130 | 99 | 16 | 13 | 27 | 12.5 | 68 | 35.7 | 34 | 14.3 | 3/8 | M10 | SUC205-14 SUC205-15 SUC205-16 SUC205 |
SFL205 | 0.5 |
| SUCFL206-17 SUCFL206-18 SUCFL206-19 SUCFL206-20 SUCFL206 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 | 148 | 117 | 18 | 13 | 31 | 12.5 | 80 | 40.2 | 38.1 | 15.9 | 3/8 | M10 | SUC206-17 SUC206-18 SUC206-19 SUC206-20 SUC206 |
SFL206 | 0.69 |
| SUCFL207-20 SUCFL207-21 SUCFL207-22 SUCFL207-23 SUCFL207 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 | 161 | 130 | 19 | 16 | 34 | 14 | 90 | 44.4 | 42.9 | 17.5 | 7/16 | M12 | SUC207-20 SUC207-21 SUC207-22 SUC207-23 SUC207 |
SFL207 | 0.86 |
| SUCFL208-24 SUCFL208 |
1-1/2 |
40 | 175 | 144 | 21 | 16 | 36 | 14 | 100 | 51.2 | 49.2 | 19 | 7/16 | M12 | SUC208-24 SUC208 |
SFL208 | 1.04 |
| SUCFL209-26 SUCFL209-27 SUCFL209-28 SUCFL209 |
1-5/8 1-11/16 1-3/4 |
45 | 188 | 148 | 22 | 13 | 38 | 16 | 108 | 52.5 | 49.2 | 19 | 1/2 | M14 | SUC209-26 SUC209-27 SUC209-28 SUC209 |
SFL209 | 1.21 |
| SUCFL210-30 SUCFL210-31 SUCFL210-32 SUCFL210 |
1-7/8 1-15/16 2 |
50 | 197 | 157 | 22 | 13 | 40 | 16 | 115 | 54.6 | 51.6 | 19 | 1/2 | M14 | SUC210-30 SUC210-31 SUC210-32 SUC210 |
SFL210 | 1.52 |
