SUZHOU (CHINA) SLZ MACHINERY CO., LTD.

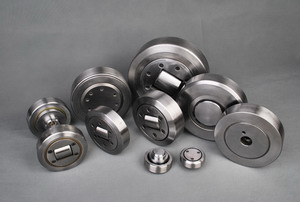

Combined Rollers

bearings — Fri, 28 Dec 2012 04:33:29 +0000

SLZ Combined Rollers are with sealed structure. Filled with high quality grease, it maintains long time lubrication impact. Re-lubrication access is available, which is helpful to prolong the working lifespan. The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads, and they come from the combined bearings and maintain the same features of construction. Application of SLZ Bearings - conveyor system; - lifting equipments; - automotive line equipments; - material handling equipments; - forklift and construction machinery; - Port forklift, crane, other large lifting equipments and high load material handling units for containers. Advantages of SLZ Combined Bearings - SLZ Combined bearings that include bolt, radial part and axial part which mounted in two directions could save the mounting spaces and reduce the production costs; - Can take up the heavy radial and axial load at the same time and the components are changeable; -The adjustable combined roller bearing can be adjusted the axial size of axial part by adjusting the pivot position through the misaligning hexagon nut or eccentric valve. - Optimized structure and reliable quality; - Saving the mounting spaces in wide range applications; - Special ready-to-fit units, helping you reduce the mounting and maintaining costs; — Special oil-supplying system and easily operating; - Made in China with European technology, high quality at competitive price; SLZ Standard Combined Bearings: * ·Standard Combined Bearings * ·Adjustable Combined Bearings * ·Adjustable Combined Bearings for Heavy Industry * ·Adjustable Combined Bearings with Eccentric Pin * ·Adjustable Combined Bearings with Screw * ·Adjustable Combined Bearings with Plastic Axial Roller * ·Adjustable Combined Bearings for Steel Industry * ·Combined Bearings for I Standard Profiles * ·JUMBO Combined Bearings * ·High Speed Combined Bearings * ·Precision Radial Bearings *Contact us now: sales@bearingsworld.com

Hydraulic Pump roller Bearing /Gear Pump roller Bearing,

bearings — Tue, 11 Dec 2012 03:35:12 +0000

Hydraulic Pump bearing / Gear Pump roller Bearing, we supply the Gear Pump roller Bearing, needle roller bearing , the needle roller bearing No. F45397.2 , F52521.2 , F50832 , X-0921, RNA32.79X49.212X28.575, Q-0921,

Mainly used in gear pump, hydraulic pump the models: S03, S05, S11, S12, S17, S30, S33, S50, S53, S63, S75, S1032, Y1032, R1032. Thing:391-0381-906 ; 391-0381-904; 391-0381-905; cheap price, top quality, fast delivery. We want to become the one top supplier for hydraulic pump parts and excavator parts.

Bearings No. Demensions: Load Rating:

d x D x B Cr (N) Cor (N)

X0921

27.026

x42.862

x25.4

49500

59000

9300

14000

0.1291

RNA32.79X49.212X28.575

32.79

x49.212

x28.575

61000

85000

7800

11600

0.190

Q0921

38.125

x58.978

x31.75

83000

104800

6700

10000

0.2821

F45397.2

27.026

x42.862

x25.4

52900

63300

9300

14000

0.1291

F52521.2

32.79

x49.212

x28.575

66800

93300

7800

11600

0.190

F50832

38.125

x58.978

x31.75

83000

104800

6700

10000

0.2821

Supplier: Suzhou (China) SLZ Machinery Co Ltd ， No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou, 215006 China, http://www.bearingsworld.com email: sales@bearingsworld.com ; office@bearingsworld.com, MSN Code: order@bearingsworld.com , Tel: 0086 13914074053, 0086 (0)512 65213180

Precision Radial Bearings

bearings — Mon, 10 Dec 2012 10:35:31 +0000

·Precision Radial Bearings,

Combined Bearings, Adjustable Combined bearings, forklift bearing, Rail bearing, Combined bearings, winlel roller bearings, and more

Bearing Code	Dimensions								Load Rating
Germany	d mm	B mm	D mm	H mm	L mm	F mm	E mm	@	C Kn	Co Kn
PR2.054	30	42	64.8	7	29.5	20	50	20	31	35.5
PR2.055	35	48	73.8	8	34	23	57	20	45.5	51
PR2.056	40	53	81.8	11.5	34	23	61	20	48	56.8
PR2.058	45	59	92.8	13	41	30	68	20	68	72
PR2.061	60	71	111.8	14	55.5	31	82	20	81	95
PR2.062	60	80	127.8	16.3	55.5	37	92	20	110	132
PR2.063	60	103	153.8	20	54	45	116	15	151	192
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load Precise Radial Combined Bearings, forklift bearings, forklift bearing, rail bearing, winlel bearings, winlel roller bearings, winlel Combined, winkel standard combined bearings, combined bearing,

·Precision Radial Bearings

Supply company

Suzhou (China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198 Homepage: http://www.bearingsworld.com ; http://www.bearingsworld.com/combined%20bearings.htm ; Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

High Speed Combined Bearings

bearings — Mon, 10 Dec 2012 10:27:23 +0000

·High Speed Combined Bearings ,

Combined Bearings, Adjustable Combined bearings, forklift bearing, Rail bearing, Combined bearings, winlel roller bearings, and more We supply Combined Bearings, High speed combined bearings, Adjustable Combined bearings, forklift bearing, Rail bearing, Combined bearings, and more.

Bearing Code	Dimensions									Load Rating
Italy A	d mm	T mm	D mm	H mm	h mm	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn
4.0235-89	45	59	88.9	57	44	30	3.5	26	3	46.6	50	26	32.2
4.0227-108	60	71	107.7	69	55	31	4	34	5	76	90	30	32
4.0228-123	60	80	123	72.3	56	37	5	40	5	106	120	42	46
4.0229-149	60	108	149	86	67	45	5	50	3	129	180	62	70
4.0230-185	80	120	185	90.5	76	55	7	65	7.5	170	250	80	104
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

·High Speed Combined Bearings

Supply company

Suzhou (China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006

Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198

Homepage: http://www.bearingsworld.com

Email Address(es): office@bearingsworld.com ;

http://www.bearingsworld.com/combined%20bearings.htm,

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

JUMBO Combined Bearings

bearings — Mon, 10 Dec 2012 10:17:06 +0000

·JUMBO Combined Bearings,

JUMBO combined bearings, combined Bearings, forklift bearing, Rail bearing, and more.

Bearing Code			Dimensions									Load Rating
Germany	Italy A	Italy B	d mm	T mm	D mm	H mm min-max	h mm min-max	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn
4.089	4.0089	MR.038A	80	113	165	69-72	53-56	40	5	50	3	213	388	85	133
4.090	4.0090	MR.012A	100	124	190	84.5-87.5	64.5-67.5	48	6.5	60	4	266	500	100	180
4.091	4.0091	MR.013A	110	146	220	94.5-97.5	74.5-77.5	58	6.5	75	5	326	681	138	257
4.092	4.0092	MR.014A	120	168	250	102-105	77-80	60	7	75	5	369	748	138	257
4.093	40.093	MR.015A	150	188	280	119.5-123.5	89.5-93.5	72	7.5	90	5	489	1066	182	488
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

JUMBO Combined Bearings

Supply company

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Combined Bearings for I Standard Profiles

bearings — Mon, 10 Dec 2012 09:54:43 +0000

·Combined Bearings for I Standard Profiles , Combined Bearings, Adjustable Combined bearings, forklift bearing, Rail bearing, Combined bearings, winlel roller bearings, and more

Bearing Code		Structure	Dimensions									Load Rating
Germany	Italy A		d mm	T mm	D mm	H mm	h mm	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn	OD on Request mm
4.055	4.0055-40	1	35	48	70.1	40	30.5	23	2.5	22	4.5	45.5	51	14	13	70.4/70.7
4.057	4.0057-78	1	40	53	77.7	40.7	29	23	3	24	4	48	56.8	18	18	78.7/78.5
4.075	4.0075-78	2	40	53	77.7	45	34	23	7	21	4	48	56.8	14	14	78.7/78.5
4.058	4.0058-49	1	45	59	88.4	49	37	30	3.5	26	4	68	72	23	23	88.9
4.059	4.0059-101	1	50	67	101.2	46	33	28	3	30	3	73	82	25	27	101.9
4.077	4.0077-101	2	50	67	101.2	50.5	37.5	28	7	21	3	73	82	189	19	108.2
4.060	4.0060-108	1	55	71	107.7	53	39	31	3	34	5	81	95	31	36	108.2 /108.5
4.078	4.0078-108	2	55	71	107.7	58.5	44.5	31	8	33	5	81	95	31	36
4.097	4.0097-123	2	58	76	123	58	43	33	4.5	33	5	125	141	40	48
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

·Combined Bearings for I Standard Profiles Combined Bearings, Adjustable Combined bearings, forklift bearing, Rail bearing, Combined bearings, winlel roller bearings, and more

Supply company

Suzhou (China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198Homepage: http://www.bearingsworld.comEmail Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Adjustable Combined Bearings for Steel Industry

bearings — Mon, 10 Dec 2012 09:47:49 +0000

·Adjustable Combined Bearings for Steel Industry ,

Bearing Code		Dimensions															Load Rating
Italy		d mm	D mm	C mm	H mm	H1 mm	H2mm	D1 mm	C1 mm	d1 mm	S mm	@	r mm	R mm	R1 mm	V mm	C Kn	Co Kn	Ca Kn	Coa Kn	Grease rev/min
ZZ	2RS	d mm	D mm	C mm	H mm	H1 mm	H2mm	D1 mm	C1 mm	d1 mm	S mm	@	r mm	R mm	R1 mm	V mm	C Kn	Co Kn	Ca Kn	Coa Kn	Grease rev/min
MR.031	MR.032	35	70.35	23	40.5	30.5	10	57	22	48	2.5	20	4	500	M10		45.5	51	14	13	900
MR.004	MR.024	40	78.3	23	40.7	29	11.7	61	24	44	2.5	20	4	700	M10	M6X1	48	56.8	18	18	800
MR.034	MR.035	45	89.25	30	50	37.5	12.5	68	26	59	3	20	4	700	M10	M6X1	68	72	23	23	800
MR.006	MR.026	50	101.9	28	46	33	13	77	30	67	2.5	20	4	700	M10	M6X1	73	82	25	27	700
MR.008	MR.038	55	108.55	31	53	39	14	82	34	71	3.5	20	4	700	M10	M6X1	81	95	31	36	700
MR.040	MR.041	60	123.5	33	57	42	15	94	40	78	2.5	15	4	750	M16	M6X1	105	108	32	39	500
MR.016		60	129.4	33	56.5	42.5	14	94	40	78	2.5	10	4	750	M16	M6X1	105	108	32	39	500
MR.011		60	65	36	61	46	15	130	60	113	3	10	4	1000	M16	M6X1	125	181	46	61	400

Supply company

Suzhou (China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198 Homepage: http://www.bearingsworld.com; http://www.bearingsworld.com/combined%20bearings.htm Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Adjustable Combined Bearings with Plastic Axial Roller

bearings — Mon, 10 Dec 2012 09:38:28 +0000

·Adjustable Combined Bearings with Plastic Axial Roller ,

Bearing Code	Dimensions																	Load Rating
Italy	d mm	D mm	C mm	H min mm	H max mm	H1 min mm?	H1 max mm?	H2 mm	D1 mm?	D2 mm?	d1 mm	S mm	@	r mm	R mm	V1 mm	V mm	C Kn	Co Kn	Ca Kn	Coa Kn	Grease rev/min
MR.961	30	62	20	38	40	30.5	32.5	7	50	26	42	2.5	20	3	500	M10		31	35.5			900
MR.962	35	70.1	23	38.5	40.5	31.5	33.5	7	57	30	48	3	20	3	500	M10	M6X1	45.5	51			900
MR.963	40	77.7	23	40.7	42.7	31.7	33.7	9	61	304	54	4	20	3	700	M10	M6X1	48	56.8			800
MR.964	45	88.9	30	48.5	51	36.5	39	12	68	33	59	4	20	4	700	M10	M6X1	68	72	15	15	700
MR.965	50	101.9	28	46	48.5	33	35.5	13	77	38	67	2.5	20	4	850	M10	M6X1	73	82	18	19	700
MR.966	55	107.7	31	53.5	56.5	41.5	44.5	12	82	42	71	6.0	20	4	1000	M16	M6X1	81	95	31	36	650
MR.967	60	123	33	61.5	64.5	49.5	52.5	12	94	42	80	6.5	15	4	1000	M16	M6X1	110	132	31	36	500
MR.967	60	149	43	75.5	79	58.5	62	17	116	63	103	6.8	15	3	1500	M16	M6X1	151	192	68	71	400

Supply company

Suzhou (China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198 http://www.bearingsworld.com http://www.bearingsworld.com/combined%20bearings.htm Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Adjustable Combined Bearings with Screw

bearings — Mon, 10 Dec 2012 09:20:17 +0000

·Adjustable Combined Bearings with Screw ,

Bearing Code	Dimensions																		Load Rating
Italy	d mm	D mm	C mm	H min mm	H max mm	H1 min mm	H1 max mm	H2mm	D1 mm	C1 mm	d1 mm	S mm	@	r mm	R mm	R1 mm	V1 mm	V mm	C Kn	Co Kn	Ca Kn	Coa Kn	Grease rev/min
MR.964	45	88.9	30	48.5	51	36.5	32.5	12	68	21	59	4	20	4	700	700	M10	M6X1	68	72	15	15	700
MR.965	50	101.9	28	46	48.5	33	33.5	13	77	24	67	2.5	20	4	850	700	M10	M6X1	73	82	18	19	700
MR.966	55	107.7	31	53.5	56.5	41.5	33.7	12	82	30	71	6	20	4	1000	700	M16	M6X1	81	95	31	36	650
MR.967	60	123	33	61.5	64.5	49.5	39	12	94	30	80	6.5	15	4	1000	1000	M16	M6X1	110	132	31	36	500
MR.968	60	149	43	75.5	79	33	58.5	17	116	45	103	6.8	15	4	1000	1000	M16	M6X1	151	192	68	71	400
C: Dynamic Load Co:Static Load Ca:axial dynamic load Coa:axial static load

Supplier: Suzhou (China) SLZ Machinery Co Ltd ， No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou, 215006 China, http://www.bearingsworld.com ， email: sales@bearingsworld.com ; office@bearingsworld.com, MSN Code: order@bearingsworld.com , Tel: 0086 13914074053, 0086 (0)512 65213180

Adjustable Combined Bearings with Eccentric Pin

bearings — Mon, 10 Dec 2012 09:14:26 +0000

·Adjustable Combined Bearings with Eccentric Pin, Adjustable Combined Bearings with Eccentric Pin, Adjustable Combined bearings, forklift bearing, Rail bearing, and more.

Bearing Code			Dimensions									Load Rating
Germany	Italy A	Italy B	d mm	T mm	D mm	H mm min-max	h mm min-max	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn
4.454	40.454	KRES.062	30	42	62	37.5-39	30.5-32	20	4	20	3	39	65	16	25
4.455	4.0455	KRES.070	35	48	70.1	44-45.5	36-37.5	23	4	20	4	56	93	16	25
4.456	4.0456	KRES.078	40	54	77.7	48-50	37-38.5	23	3.5	26	4	59	102	23	36
4.457	4.0457		40	54	77.7	40-41.5	29-30.5	23	3.5	26	4	59	102	23	36
4.458	4.0458	KRES.089	45	59	88.4	57-58.5	44-45.5	30	4	26	4	85	134	23	36
4.459	4.0459		50	69	101.2	46-48	33-35	26	4.5	30	3	91	140	32	50
4.460	4.0460	KRES.108	55	69	107.7	54-56	40-42	31	4	30	5	100	174	32	50
4.461	4.0461	KRES.123	60	69	107.7	69-71	55-57	31	4	30	5	100	174	32	50
4.462	4.0462	KRES.149	60	80	123	72.3-76.3	56-60	37	4.5	34	5	135	242	41	72
4.463	4.0463		60	108	149	78.5-82.5	58.5-62.5	45	6	34	3	183	353	41	72
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

Adjustable Combined Bearings for Heavy Industry

bearings — Mon, 10 Dec 2012 08:36:08 +0000

·Adjustable Combined Bearings for Heavy Industry

Bearing Code	Dimensions									Load Rating
Italy A	d mm	T mm	D mm	H mm	h mm	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn
4.0069-170	70	98	170	109.7	84.7	51	14.5	49.7	4	195	361	83	129
4.0087-185	80	115	185	100	75	47	15	49.7	3	235	440	83	130
4.0019-220	110	150	220	115	90	60	13.5	70	5	367	719	103	230
4.0038-260	130	184	260	120	95	60	18	80	5	475	1000	167	279
4.0274-260	150	187	260	135	110	80	10	80	5	566	3000	167	379
4.0088-300	140	290	300	140	110	80	10	86	8	549	1272	195	335
4.0084-340	140	240	340	150	120	89	10	100	8	785	1690	227	392
4.0275-390	170	242	390	200	150	118	11	100	8	1076	2535	227	392
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

Supply company

Suzhou (China) SLZ Machinery Co Ltd. Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198Homepage: http://www.bearingsworld.com; http://www.bearingsworld.com/combined%20bearings.htm;

Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Adjustable Combined Bearings

bearings — Mon, 10 Dec 2012 08:25:00 +0000

·Adjustable Combined Bearings ;

Bearing Code			Dimensions									Load Rating
			d mm	T mm	D mm	H mm	h mm	B mm	A mm	S mm	r mm	C Kn	Co Kn	Ca Kn	Coa Kn	OD on Request mm
4.072	4.0072-62	MR.146	30	42	62	43	33	20	5.5	16	3	31	35.5	8	8	62.5
4.073	4.0073-70	MR.147	35	48	70.1	48	40	23	6.5	16	4.5	45.5	51	14	14	70.7/70.4
4.074	4.0074-78	MR.148	40	53	77.7	51	39.5	23	7	21	4.5	48	56.8	14	14	78.1/78.5
4.076	4.0076-88	MR.150	45	59	88.4	61	48	30	7	21	4.5	68	72	15	15	88.9
4.078	4.0078/L	MR.142	60	71	107.7	73	59	31	8	33	5	81	95	31	36	108.2/108.5
4.079	4.0079-123	MR.153	60	80	123	75.8	59.5	37	8	33	5	110	132	31	36
4.080	4.0080-149	MR.154	60	103	149	89	69	45	15	50	5	151	192	68	71
C:dynamic load Co:static load Ca:axial dynamic load Coa:axial static load

Supply company

Suzhou (China) SLZ Machinery Co Ltd. Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198Homepage: http://www.bearingsworld.com

Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

Standard Combined Bearings

bearings — Mon, 10 Dec 2012 08:08:56 +0000

·Standard Combined Bearings , Combined roller bearings, Combined crossway roller bearing, Forklift crossway roller bearings,

Bearing Code				Dimensions															Load Rating
Germany	Italy A	Italy B 2Z? 2RS		d mm	D mm?	C mm	H mm	H1 mm	H2 mm?	D1 mm?	C1 mm?	d1 mm	S mm	@	r mm	R mm	R1 mm	V mm	C Kn	Co Kn	Ca Kn	Coa Kn	Request mm
4.054	4.0054-62	MR.001	MR.021	30	62	20	37.5	30.5	7	50	20	42	2.5	20	3	500	500		31	35.5	11.1	11.5	62.5
4.055	4.0055-70	MR.002	MR.022	35	70.1	23	44	36	8	57	22	48	2.5	20	4.5	500	500	M6X1	45.5	51	14	13	70.7/70.4
4.056	4.0056-78	MR.003	MR.023	40	77.7	23	48	36.5	11.5	61	26	53	3	20	4.5	500	500	M6X1	48	56.8	18	18	78.1/78.5
4.058	4.0058-88	MR.005	MR.025	45	88.4	30	57	44	13	68	26	59	3.5	20	4.5	700	700	M6X1	68	72	23	23	88.9
4.061	4.0061-108	MR.007	MR.027	60	107.7	31	69	55	14	82	34	71	4.0	20	5	1000	700	M6X1	81	95	31	36	108.2/108.5
4.062	4.0062-123	MR.009	MR.029	60	123	37	72.3	56	16.3	92	40	80	5.0	20	5	1000	1000	M6X1	110	132	43	50
4.063	4.0063-149	MR.010	MR.030	60	149	45	78.5	58.5	20	116	50	108	5.5	15	4	1500	1000	M6X1	151	192	68	71
	4.0011-149	MR.191		60	149	45	86	67	19	120	50	108	5.5	15	3	1500	1000	1/8GAS	151	192	68	71
	4.0037-174			80	174	55	95	71	24	141	63	120	7	20	7	1500	1000	1/8GAS	278	518	132	210
	4.0039-185			80	185	55	95	71	24	141	63	120	7	20	7	1500	1000	1/8GAS	278	518	132	210

Standard combined bearings, forklift bearing, Rail bearing, Combined Bearings, JUMBO combined bearings, and more

Supply company

Suzhou (China) SLZ Machinery Co Ltd. Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198Homepage: http://www.bearingsworld.com

Email Address(es): office@bearingsworld.com

Key Contact: Mr Dong Yuexian Sales Manager sales@bearingsworld.com

COMBINED BEARING FORKLIFT BEARING

bearings — Mon, 10 Dec 2012 07:57:59 +0000

COMBINED BEARING FORKLIFT BEARING

Combined bearings are particularly suitable for truck lift columns and all other shifting and convying systems requiring profiles.They can afford load from both axial direction at the radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial load, and they come from the combined bearings and maintain the same features of construction.

Combined Bearing Series: ·Standard Combined Bearings ·Adjustable Combined Bearings ·Adjustable Combined Bearings for Heavy Industry ·Adjustable Combined Bearings with Eccentric Pin ·Adjustable Combined Bearings with Screw ·Adjustable Combined Bearings with Plastic Axial Roller ·Adjustable Combined Bearings for Steel Industry ·Combined Bearings for I Standard Profiles ·JUMBO Combined Bearings ·High Speed Combined Bearings ·Precision Radial Bearings

Stainless steel Self-aligning ball bearings dimensions

bearings — Mon, 10 Dec 2012 05:23:42 +0000

Stainless steel Self-aligning ball bearings dimensions and mouting table, The high performance stainless steel bearings can provides not only with the cleanliness and corrosion resistance characteristic also with the high accuracy and excellent wear resistance compare to the high carbon chrome steel bearings. The rings and balls are made of the material as a standard structure of stainless steel bearing, The rings and balls are made of the material of AISI440C( 9Cr18Mo or 9Cr18), the cage and the framework of seal adoption the AI304 or AI316, production accuracy could reach ISO standard ABEC-1 and above, and the vibration level reach Z1 grade and above.

Stainless steel Self-aligning ball bearings dimensions
Stainless steel Self-aligning ball bearings dimensions
Bearing No.					da	Da	ra	（kg)
	d	D	B	r (minimum)	minimum	maximum	maximum	Mass
SS135	5	19	6	0.3	7	17	0.3	0.009
SS126	6	19	6	0.3	8	17	0.3	0.009
SS127	7	22	7	0.3	9	20	0.3	0.014
SS108	8	22	7	0.3	10	20	0.3	0.014
SS129	9	26	8	0.6	13	22	0.6	0.022
SS1200	10	30	9	0.6	14	26	0.6	0.034
SS2200		30	14	0.6	14	26	0.6	0.047
SS1300		25	11	0.6	14	31	0.6	0.058
SS2300		25	17	0.6	14	31	0.6	0.085
SS1201	12	32	10	0.6	16	28	0.6	0.04
SS2201		32	14	0.6	16	28	0.6	0.053
SS1301		37	12	1	17	32	1	0.067
SS2301		37	17	1	17	32	1	0.095
SS1202	15	35	11	0.6	19	31	0.6	0.049
SS2202		35	14	0.6	19	31	0.6	0.06
SS1302		42	13	1	20	37	1	0.094
SS2302		42	17	1	20	37	1	0.11
SS1203	17	40	12	0.6	21	36	0.6	0.073
SS2203		40	16	0.6	21	36	0.6	0.088
SS1303		47	14	1	22	42	1	0.13
SS2303		47	19	1	22	42	1	0.16
SS1204	20	47	14	1	25	42	1	0.12
SS2204		47	18	1	25	42	1	0.14
SS1304		52	15	1.1	26.5	45.5	1	0.16
SS1304		52	21	1.1	26.5	45.5	1	0.21
SS1205	25	52	15	1	30	47	1	0.14
SS2205		52	18	1	30	47	1	0.16
SS1305		62	17	1.1	31.5	55.5	1	0.26
SS2305		62	24	1.1	31.5	55.5	1	0.34
SS1206	30	62	16	1	35	57	1	0.22
SS2206		62	20	1	35	57	1	0.26
SS1306		72	19	1.1	36.5	65.5	1	0.39
SS2306		72	27	1.1	36.5	65.5	1	0.50
SS1207	35	72	17	1.1	41.5	65.5	1	0.32
SS2207		72	23	1.1	41.5	65.5	1	0.40
SS1307		80	21	1.5	43	72	1.5	0.51
SS2307		80	31	1.5	43	72	1.5	0.68
SS1208	40	80	18	1.1	46.5	73.5	1	0.42
SS2208		80	23	1.1	46.5	73.5	1	0.51
SS1308		90	23	1.5	48	82	1.5	0.72
SS2308		90	33	1.5	48	82	1.5	0.93
SS1209	45	85	19	1.1	51.5	78.5	1	0.47
SS2209		85	23	1.1	51.5	78.5	1	0.55
SS1309		100	25	1.5	53	92	1.5	0.96
SS2309		100	36	1.5	53	92	1.5	1.23
SS1210	50	90	20	1.1	56.5	83.5	1	0.53
SS2210		90	23	1.1	56.5	83.5	1	0.59
SS1310		110	27	2	59	101	2	1.21
SS2310		110	40	2	59	101	2	1.64
SS1211	55	100	21	1.5	63	92	1.5	0.71
SS2211		100	25	1.5	63	92	1.5	0.81
SS1311		120	29	2	64	111	2	1.58
SS2311		120	43	2	64	111	2	2.1
SS1212	60	110	22	1.5	68	102	1.5	0.9
SS2212		110	28	1.5	68	102	1.5	1.09
SS1312		130	31	2.1	71	119	2	1.96
SS2312		130	46	2.1	71	119	2	2.6
SS1213	65	120	23	1.5	73	112	1.5	1.15
SS2213		120	31	1.5	73	112	1.5	1.46
SS1313		140	33	2.1	76	129	2	2.45
SS2313		140	48	2.1	76	129	2	3.23
SS1214	70	125	24	1.5	78	117	1.5	1.26
SS2214		125	31	1.5	78	117	1.5	1.52
SS1314		150	35	2.1	81	139	2	2.99
SS2314		150	51	2.1	81	139	2	4.23
SS1215	75	130	25	1.5	83	122	1.5	1.36
SS2215	75	130	31	1.5	83	122	1.5	1.62
SS1216	80	140	26	2	89	131	2	1.67
SS2216	80	140	33	2	89	131	2	2.01
SS1217	85	150	28	2	94	141	2	2.07
SS2217	85	150	36	2	94	141	2	2.52

Supplier: Suzhou (China) SLZ Machinery Co Ltd ， No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou, 215006 China, http://www.bearingsworld.com/right_ceramicbearing.htm ， email: sales@bearingsworld.com ; office@bearingsworld.com, MSN Code: order@bearingsworld.com , Tel: 0086 13914074053, 0086 (0)512 65213180
