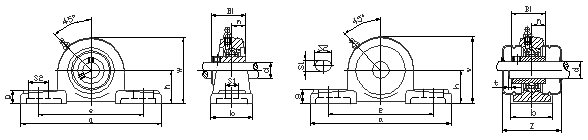

PILLOW BLOCKS

UCP 200 Series





BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
h a e b S2 S1 g w t Z Bi n (mm) (in)
(in) (mm)
UCP201-8 1/2   30.2 127 95 38 19 13 14 62 2 51 31 12.7 M10 3/8 UC201-8 P203 0.33
UCP202-9 9/16   UC202-9
UCP202-10 5/8   UC202-10
UCP203-11 11/16   UC203-11
UCP201   12 UC201
UCP202   15 UC202
UCP203   17 UC203
UCP204-12 3/4   33.3 127 95 38 19 13 14 65 2 51 31 12.7 M10 3/8 UC204-12 P204 0.46
UCP204   20 UC204
UCP205-13 13/16 25 36.5 140 105 38 19 13 15 71 2 57 34.1 14.3 M10 3/8 UC205-13 P205 0.60
UCP205-14 7/8 UC205-14
UCP205-15 15/16 UC205-15
UCP205-16 1 UC205-16
UCP205   UC205
UCP206-17 1-1/16 30 42.9 165 121 48 21 17 17 83 2 62 38.1 15.9 M14 1/2 UC206-17 P206 0.97
UCP206-18 1-1/8 UC206-18
UCP206-19 1-3/16 UC206-19
UCP206-20 1-1/4 UC206-20
UCP206   UC206
UCP207-20 1-1/4 35 47.6 167 127 48 21 17 18 93 3 72 42.9 17.5 M14 1/2 UC207-20 P207 1.00
UCP207-21 1-5/16 UC207-21
UCP207-22 1-3/8 UC207-22
UCP207-23 1-7/16 UC207-23
UCP207   UC207
UCP208-24 1-1/2 40 49.2 184 137 54 21 17 18 98 3 82 49.2 19.0 M14 1/2 UC208-24 P208 1.30
UCP208-25 1-9/16 UC208-25
UCP208   UC208
UCP209-26 1-5/8 45 54 190 146 54 21 17 20 106 3 82 49.2 19.0 M14 1/2 UC209-26 P209 1.40
UCP209-27 1-11/16 UC209-27
UCP209-28 1-3/4 UC209-28
UCP209   UC209
UCP210-29 1-13/16 50 57.2 206 159 60 25 20 21 114 3 87 51.6 19.0 M16 5/8 UC210-29 P210 1.83
UCP210-30 1-7/8 UC210-30
UCP210-31 1-15/16 UC210-31
UCP210-32 2 UC210-32
UCP210   UC210
UCP211-32 2 55 63.5 219 171 60 25 20 23 126 4 92 55.6 22.2 M16 5/8 UC211-32 P211 2.4
UCP211-33 2-1/16 UC211-33
UCP211-34 2-1/8 UC211-34
UCP211-35 2-3/16 UC211-35
UCP211   UC211
UCP212-36 2-1/4 60 69.8 241 184 70 25 20 25 138 4 102 65.1 25.4 M16 5/8 UC212-36 P212 2.8
UCP212-37 2-5/16 UC212-37
UCP212-38 2-3/8 UC212-38
UCP212-39 2-7/16 UC212-39
UCP212   UC212
UCP213-40 2-1/2 65 76.2 265 203 70 29 25 27 151 4 107 65.1 25.4 M20 3/4 UC213-40 P213 3.5
UCP213-41 2-9/16 UC213-41
UCP213   UC213
UCP214-42 2-5/8 70 79.4 266 210 72 31 25 27 157     74.6 30.2 M20 3/4 UC214-42 P214 4.45
UCP214-43 2-11/16 UC214-43
UCP214-44 2-3/4 UC214-44
UCP214   UC214
UCP215-45 2-13/16 75 82.6 275 217 74 31 25 28 163     77.8 33.3 M20 3/4 UC215-45 P215 4.9
UCP215-46 2-7/8 UC215-46
UCP215-47 2-15/16 UC215-47
UCP215-48 3 UC215-48
UCP215   UC215
UCP216-50 3-1/8 80 88.9 292 232 78 31 25 30 175     82.6 33.3 M20 3/4 UC216-50 P216 5.8
UCP216   UC216
UCP217-52 3-1/4 85 95.2 310 247 83 31 25 32 187     85.7 34.1 M20 3/4 UC217-52 P217 6.9
UCP217   UC217
UCP218-56 3-1/2 90 101.6 327 262 88 33 27 33 200     96.0 39.7 M22 7/8 UC218-56 P218 8.10
UCP218   UC218
