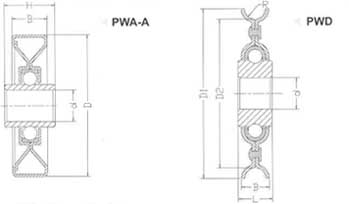

| Unit No. |
Dimensions (mm) |
Ball |
LOADING (Lbs) |
||||
|
D |
d |
B |
H |
No. |
Dia. |
||
| PWA 3801 | 38 | 6.11 | 12 | 24.7 | 7 | 1/4 | 40 |
| PWA 3802 | 38 | 6.55 | 14.3 | 20.64 | 7 | 1/4 | 40 |
| PWA 4801 | 48 | 8.1 | 16.2 | 24 | 8 | 1/4 | 75 |
| PWA 4901 | 49.2 | 6.55 | 15.88 | 20.64 | 7 | 1/4 | 50 |
| PWA 4902 | 49.2 | 6.4 | 16 | 20.8 | 7 | 1/4 | 50 |
| PWA 4903 | 49.2 | 6.55 | 15.88 | 23.8 | 7 | 1/4 | 55 |
| PWA 4904 | 49.2 | 8.13 | 15.88 | 20.64 | 8 | 1/4 | 60 |
| PWA 4905 | 49.2 | 6.55 | 17 | 20.64 | 7 | 1/4 | 75 |
| PWA 4906 | 49.2 | 6.55 | 14.3 | 22 | 7 | 1/4 | 75 |
| PWA 4907 | 49.2 | 6.4 | 16 | 20.8 | 7 | 1/4 | 100 |
| PWA 4908 | 49.2 | 6.55 | 14.3 | 22.2 | 8 | 1/4 | 100 |
| PWA 4909 | 49.2 | 7.94 | 14.3 | 22.2 | 8 | 1/4 | 100 |
| PWA 4910 | 49.2 | 6.5 | 14.3 | 22 | 8 | 1/4 | 150 |
| PWA 4911 | 49.2 | 8.15 | 14.3 | 22 | 8 | 1/4 | 150 |
| PWA 4912 | 49.2 | 6.5 | 14.3 | 20.5 | 8 | 1/4 | 150 |
| PWA 5001 | 50.8 | 6.5 | 14.3 | 22 | 8 | 1/4 | 150 |
| PWB 4801 | 47.63 | 6.55 | 5/16 | 22.64 | 18 | 3/16 | 120 |
| PWB 4802 | 47.63 | 8.18 | 5/16 | 20.64 | 20 | 3/16 | 130 |
| PWB 4803 | 48 | 8.1 | 7/16 | 21 | 20 | 3/16 | 130 |
| PWC 5001 | 49.1 | 6.55 | 5/16 | 22.2 | 10 | 1/4 | 120 |
| PWC 5002 | 49.1 | 6.55 | 5/16 | 23.81 | 10 | 1/4 | 120 |
| PWC 5003 | 51.2 | 8.2 | 7/16 | 24 | 10 | 1/4 | 120 |
| PWC 7001 | 69.85 | 8.15 | 7/16 | 22.2 | 8 | 1/4 | 120 |
